System Specifications

System type: LPW PowerJet 670 T4 Twin CNp

System type: Two-chamber cleaning system

Year of construction: 2019

Medium: Aqueous cleaning

Process Allocation

Working chamber 1: Tank 1 and Tank 2

Working chamber 2: Tank 3 and Tank 4

Individual Process Steps (in all media-steps)

• Spraying
• Immersion flooding
• CNp
• Ultrasound (with retrofitting possible)

Batch Size

Maximum length: 670 mm

Maximum width: 480 mm

Maximum height: 300 mm

Batch weight: 150 kg

Automation / Roller Conveyor

• 10 m straight conveyor line
• 90° converter in cleanroom
• Buffer place with 2.5 m length
• Airlock for transfer to the clean room (ISO 7)
• Retrofitting of FFU units for cleanroom transition possible

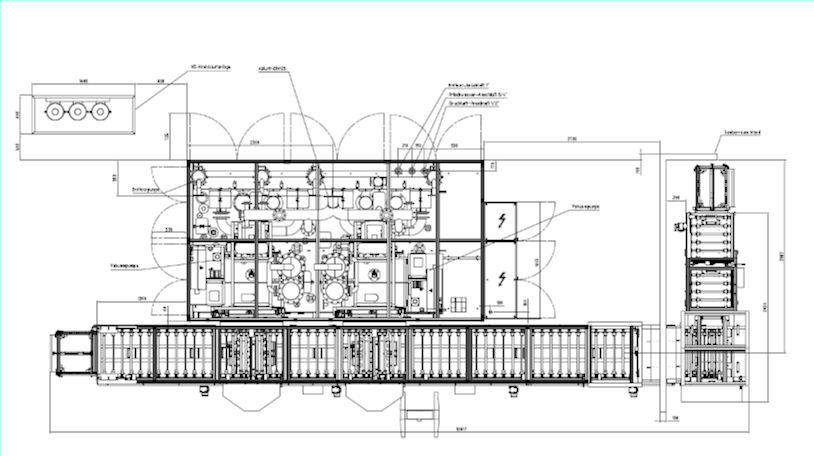

System Dimensions

Depth: 2,500 mm

Basic machine width: 5,100 mm

Height (without conveyor): 3,000 mm

Connected Loads

Total connected load: approx. 109 kW, 200 A

Voltage: 400 V; 50 Hz

Working temperature: approx. 70°C
